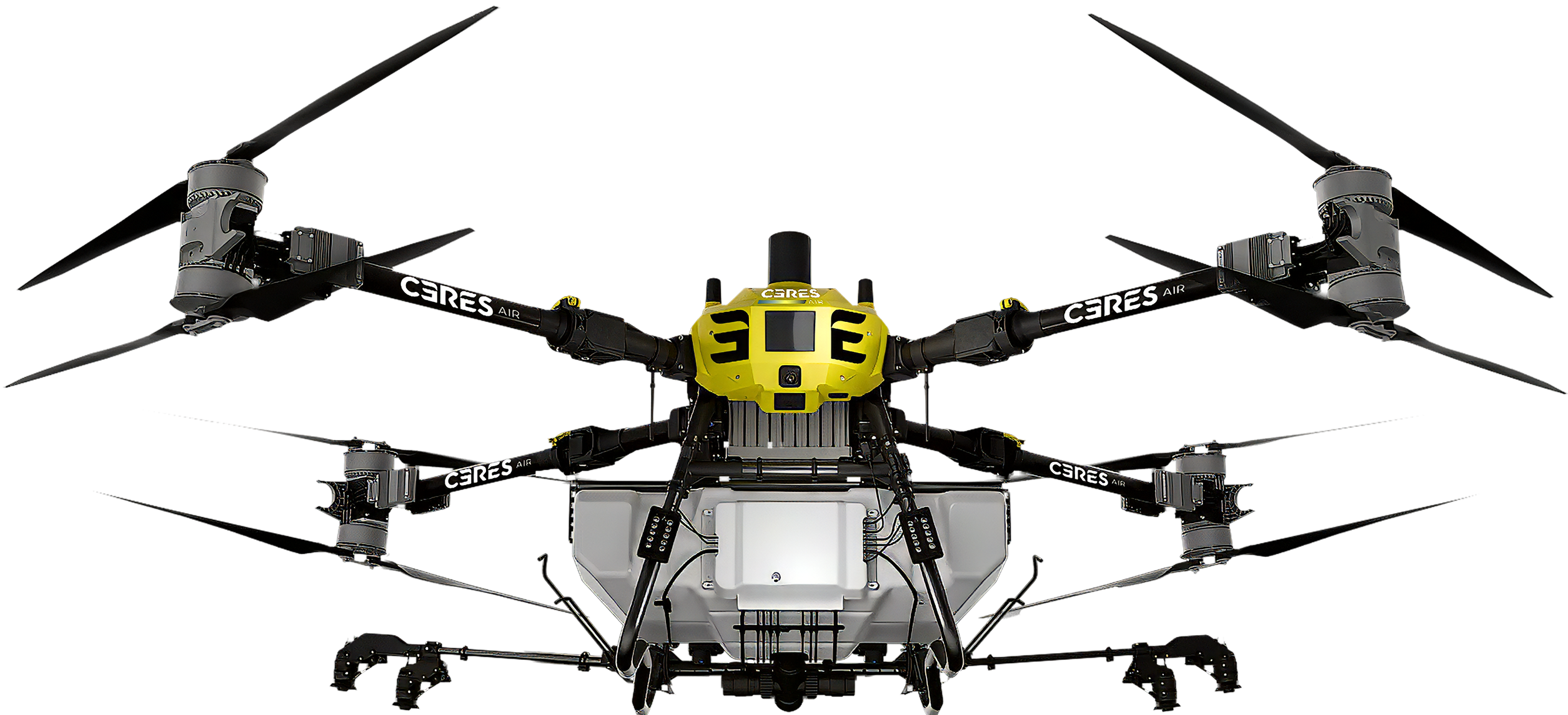

C150
397 lbs *
Max Payload
Up to 20 acres
Per Flight
40 L/min
Coverage
150 L
Spray Tank
617 lbs *
Maximum Takeoff Weight
2 km
Maximum Image Transmission Range
Up to 80 acres/hr
Coverage
661 lbs/min
Max Spreading Rate
Dimensions
3863 x 3964 x 1071mm (arms/blades unfolded)
3863 x 3964 x 1071mm (folded)
Max Take-off Weight
617 lbs
Structure Layout
4-axis, 8-propeller configuration
Fast Charging Time
25% to 95% in approx.
10 min 25 sec
Charger Input Voltage
110 Vac~230 Vac
FPV Camera Field of View
80° horizontal / 170° vertical
Spray Tank Volume
150 L
Atomized Droplet Size
50 µm ~ 500 µm
(centrifugal nozzle)
Lifting Payload Capacity
397 lbs
Cable Length
15m (standard)
Remote Controller Screen
6 inches
Remote Controller Battery Life
≥ 7 hours
*For large payloads, an SFOC may be required.
C70
176 lbs *
Max Payload
12,000 W
Smart Charger
70 L
Spray Tank
Up to 60 ac/hrat 2 gpa
Coverage
308 lbs *
Maximum Takeoff Weight
65 km/hr
Max Speed
100 L
Spread Tank Vol
40 L
Max Flow
Arm unfolded size
130 x 140 x 33 in
Arm folded size
50 x 34 x 34 in
Maximum takeoff weight
Spray 308 lbs / spread 330 lbs
Tank capacity
70L
Maximum spray width
39 ft (Altitude: 11 ft ± 1 ft, Speed: 16 ft/s)
Atomization size
Centrifugal nozzle 50~500 micron
Pump type
Magnetic impeller pump ×2
Max flow
2 nozzles 7 gal/min; 4 nozzles 10 gal/min
Spread tank
98 L
Max load
176 lbs
Feeding method
Auger
Particle diameter supported
0.5–10 mm dry solid particles
Spread width
4~10m
Max feeding quantity
661 lbs/min
*For large payloads, an SFOC may be required.
